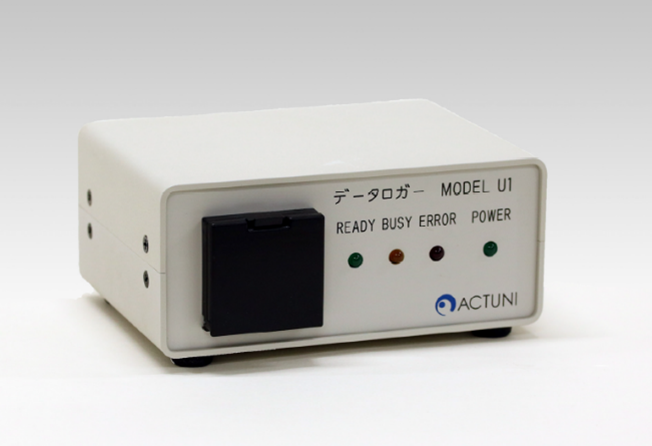

DataLogger model U1
Data logger for the UMS-6500 and UMS-6500Ⅱ
This device uses the RS-232C port of the UMS-6500 and UMS-6500Ⅱ main unit (hereinafter referred to as UMS) to record the inspection result data and screen hard copy sent from UMS to a USB flash drive. It is the best device for customers who need traceability of inspection results.
Main Features
- Easy to connect
-

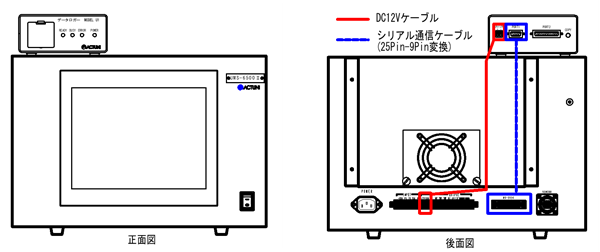

Simply connect the included cable to the UMS, adjust the baud rate, and you are ready to go.
Power can be taken from the UMS, so there is no need to prepare a separate power supply. It is small and lightweight and does not take up space.
- Unified management with UMS dedicated terminal software
-

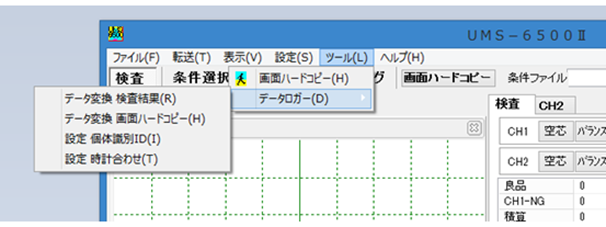

Tools for handling data loggers are built into the UMS dedicated terminal software that comes with UMS. Data management can be done with one software.

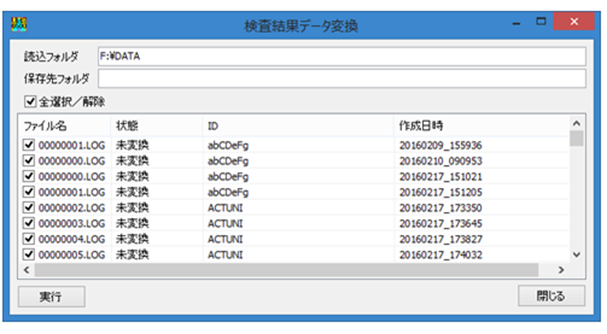

It is possible to convert each saved log file to a CSV file which is used for data analysis of measurement results using spreadsheet software.
Download the latest Adobe Acrobat Reader from https://www.adobe.cm/.
Specifications
| Type | DataLogger model U1 |
|---|---|
| USB flash drive | Max. 32 GB : FAT32 file system Attached USB flash drive : 8 GB or more * Up to 12 million results can be stored per GB (depends on storage conditions) |
| Serial Port | RS-232C standard baudrate : 9600, 19200, 38400, 57600, 115200 bps (depends on the hardware settings in the DataLogger model U1) |
| Clock | Precision : Monthly difference within ± 2 minutes（25 ℃） CR2032 : Battery life Approximately 7 years（25 ℃） Battery life may be shortened if the power of the DataLagger model U1 is turned off for a long time. |
| Environmental | Temperature range: 0 ℃ - 40 ℃ Humidity: 30 % - 90 % (without condensation) |
| Dimensions | W: 140 mm H: 65.5 mm D: 100 mm (not including rubber legs and connecters.) |
| Weight | Approximately 0.5 kg |
| Power | DC12V (min. 10 V - max. 18 V) |
