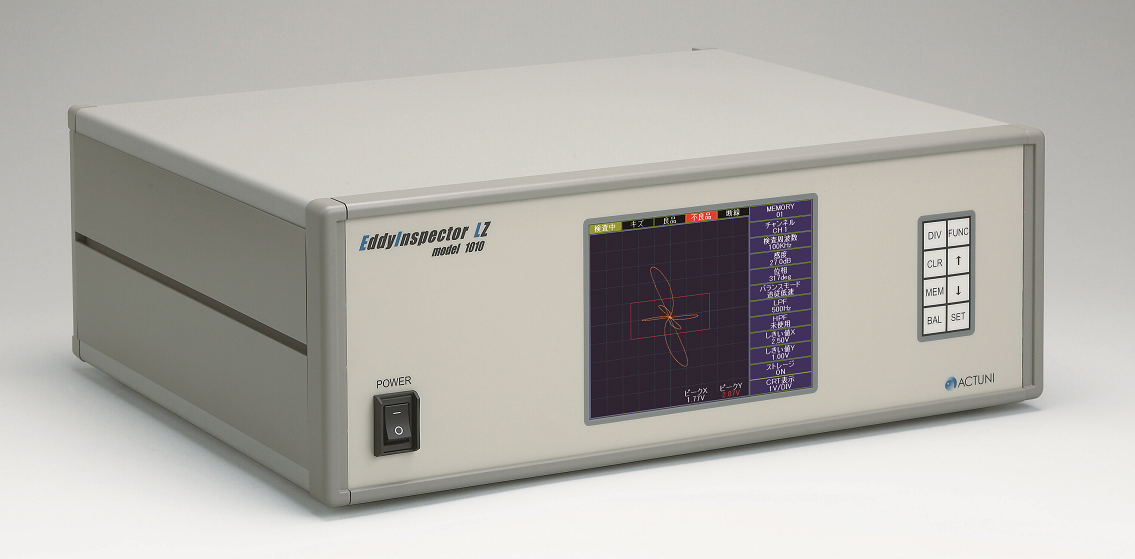

EddyInspector LZ - Eddy Current Flaw Detector for Production Lines
Eddy Current Flaw Detector for Production Lines
The EddyInspector LZ is a high-end model that adds a power amplifier as well as memory and communication capabilities to the base model EddyInspector LX.
Main Features

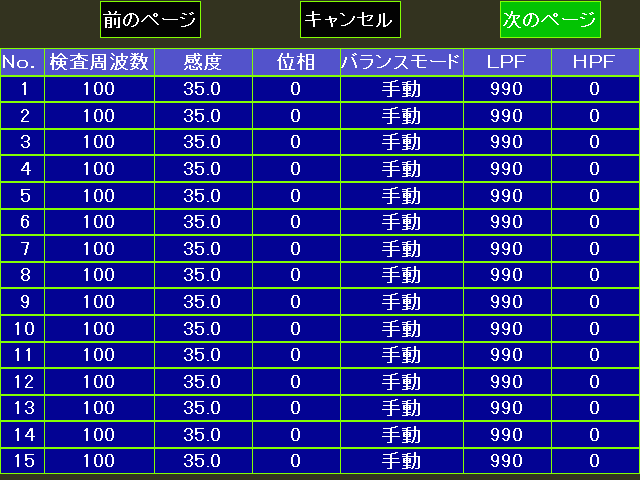

- Capable of storing up to 99 parameter setups
-
The EddyInspector LZ can store up to 99 parameter setups. It is ideal for inspecting products with different model on a single production line. The operator can change inspection parameters using commands from a PLC or other external device. For each product under inspection, the operator can switch from one parameter setup number to another, change individual parameter settings, store parameter settings in memory, or even change parameters during inspection. Thus, the operator can set different thresholds for different areas of a product and make other minor adjustments.

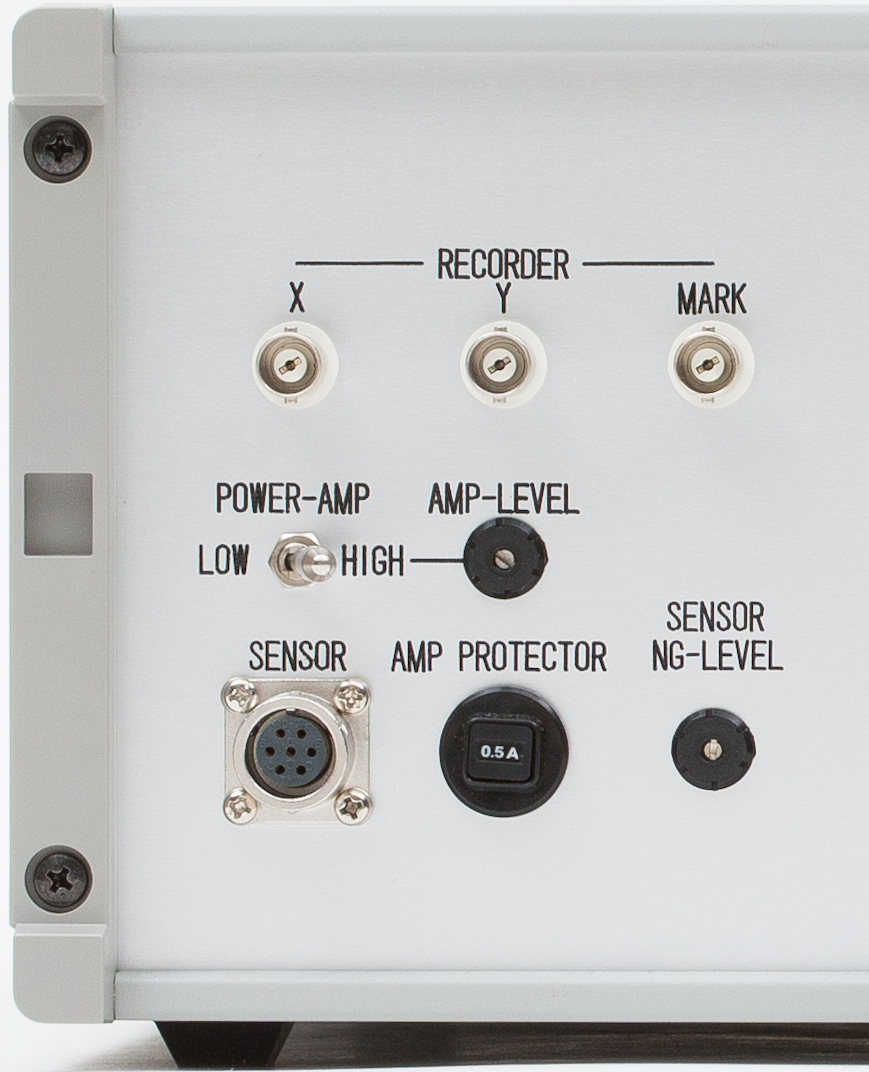

- The built-in power amplifier improves inspection accuracy
-
With the built-in power amplifier, the EddyInspector LZ enables a higher excitation voltage (10 to 20 [Vp-p]) to be applied than the base model EddyInspector LX (6 [Vp-p]). This helps improve inspection sensitivity and accuracy.

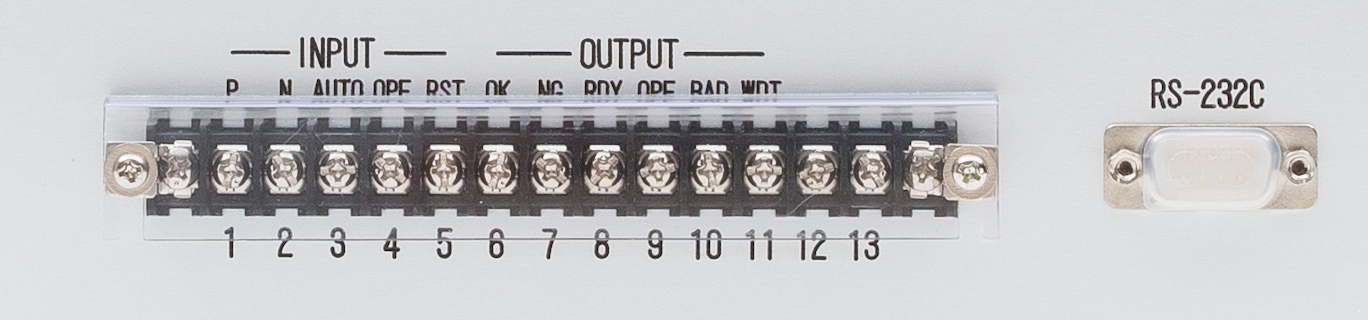

- Control inputs and outputs and a communication connector
-
- Single- and dual-channel types
- You can choose a single- or dual-channel type to suit your needs.
Download the latest Adobe Acrobat Reader from https://www.adobe.com/.
Specifications
| Probe Type | Self-induction or mutual-induction |
|---|---|
| Detection Method | X-Y synchronous detection |
| Test Frequency | 1 kHz - 2000 kHz (1 kHz steps) Note: A maximum of 500 kHz with a built-in power amplifier |
| Sensitivity | 0.0 dB - 60.0 dB (0.1 dB steps) 60.0 dB - 80.0 dB (0.5 dB steps) |
| Phase | 0 deg - 359 deg (1 deg steps) |
| Bridge Balance | Manual balance（approx. 100 ms） Follow-up balance (2 speeds) The follow-up speed is adjustable between 0000 - 0FFF. |
| L.P.F. | 10 - 990 Hz (10 Hz steps) -24 dB/oct |
| H.P.F. | OFF, 1 - 100 Hz (1 Hz steps) -24 dB/oct 100 - 400 Hz (10 Hz steps) |
| Testing |
Window comparator around the origin. ±0.20 V - ±9.95 V（0.01 V steps; each X and Y) or DISABLED |
| Display | 6.5 inch TFT color LCD Parameters, OPE, OK, NG, Defect, Error and ET signal view |
| Language | Japanese and English (option) |
| Inputs / Outputs | ・Analog outputs: DC ±10 V（X and Y signal; BNC connector） ・MARK output for a recorder (O.C.)（BNC connector) ・External control inputs（terminal block） P(+12 - +24 V power supply)、N（power GND)、AUTO、OPE ・External control outputs（terminal block) RDY、OPE、OK、NG、BAD、WDT |
| Environmental | Temperature range: 5 ℃ - 40 ℃, Humidity: 30 % - 85 % (without condensation) |
| Dimensions | W: 430 mm H: 149 mm D: 350 mm （not including rubber legs and connecters. ） |
| Power | AC100 - 240 V ±10 % 50 / 60 Hz single phase |
