EddyStation SWII | Maintenance Inspection

Windows-Based Eddy Current Flaw Detector

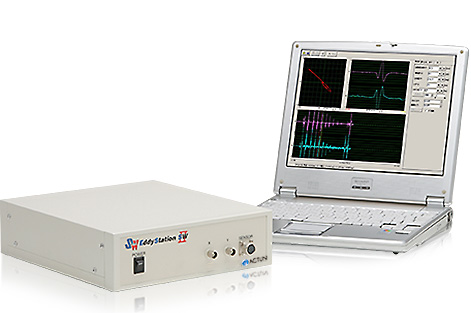

The EddyStation SWII is a single-frequency eddy current flaw detector that works with Windows operating systems. To perform eddy current flaw detection, simply connect the detector to a PC via a USB cable and start its dedicated software. The system is mostly controlled with a mouse and allows the operator to see various views, enlarge waveforms, and use acquired images and data in other applications.

EddyStation SWII | Maintenance Inspection

Main Features

Versatile with a laptop
Designed as a Windows-based detector, the EddyStation SWII is controlled with a mouse and keyboard. The operator can save and retrieve acquired data freely and use data, such as waveforms and parameter settings, in other applications. The detector is particularly useful in creating inspection reports.
Also, it includes a storage feature that can display waveforms as smoothly as on a CRT.
Furthermore, it is equipped with analog outputs (BNC connectors) that provide output to a chart recorder.
Its dedicated software is compatible with Windows 10.
High-speed sampling
The EddyStation SWII offers the capability to plot waveforms at high speeds of up to 10 kHz (10,000 points per second). The detector keeps track of all waveform peaks, even in high-speed inspection.
A variety of waveform display modes help create reports

>A variety of waveform display modes help create reports

Once flaw detection results are obtained and stored on a USB flash drive, the operator can plug it into a Windows PC and use our dedicated software to view the results and create data for reports.

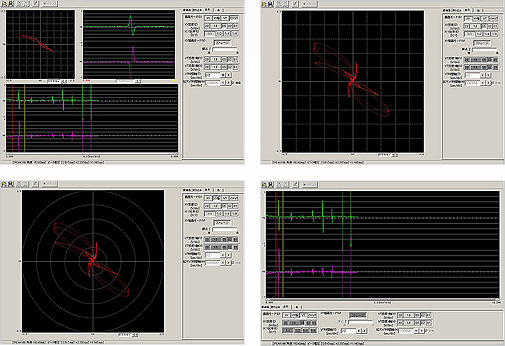

Four types of waveform views are available: XY, XY polar coordinate, VT, and VT+XY views.

Quick and simple waveform analysis

Quick and simple waveform analysis

Using two cursors, the operator can instantly display the values of the x- and y-axis amplitude voltages, vector peak voltage, and phase angle of the desired waveform. This feature makes the detector also useful for data analysis.
