EddyStation HL | Maintenance Inspection

Portable Eddy Current Flaw Detector

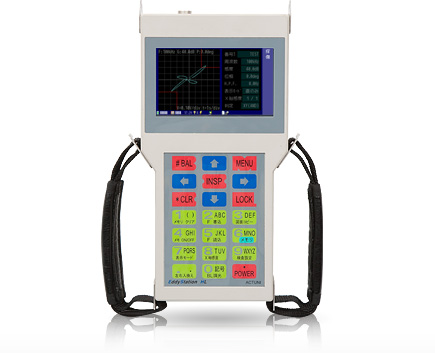

The EddyStation HL is a portable eddy current flaw detector designed for conducting maintenance inspections at bridges and plants. Compact, lightweight, and powered by built-in battery, the detector is ideal for checking for flaws at sites where no power supply equipment is available.
Flaw detection parameter settings and results can be stored on the internal memory of the detector or on a USB flash drive. In addition, a touch pen can be used to write notes on the flaw detection screen. The detector comes with dedicated software that allows the operator to view stored flaw detection results and create reports on a PC.

EddyStation HL | Maintenance Inspection

Main Features

For maximum ease of use

For maximum ease of use

Thanks to the built-in battery, the EddyStation HL can be used at a variety of sites. Its dedicated case comes with a neck strap to prevent the detector from being accidentally dropped.
Also, the detector allows the operator to check for flaw signals by listening for beeps, so the operator can concentrate on performing flaw testing using both hands. Naturally, the detector has an earphone jack that helps the operator hear beeps even in noisy surroundings.

A bright, clear color display

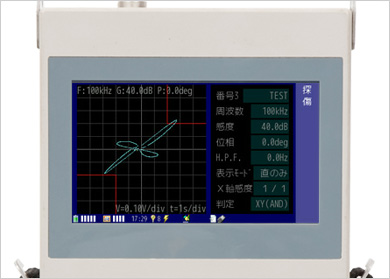

The EddyStation HL includes a color LCD with brightness adjustment, enabling the operator to clearly see the screen, whether in a bright or dark location.

A bright, clear color display

A writable touchscreen

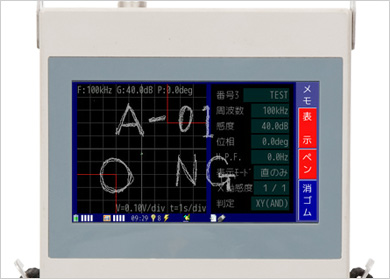

Featuring a touchscreen, the EddyStation HL allows the operator to write comments or remarks directly on the screen. Using dedicated software, the operator can also view stored results and print them with or without notes.

A writable touchscreen

Quick and simple waveform analysis

Quick and simple waveform analysis

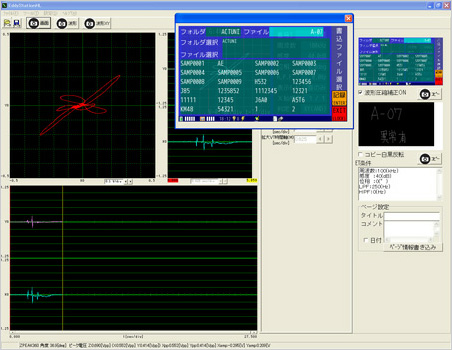

Once flaw detection results are obtained and stored on a USB flash drive, the operator can plug it into a Windows PC and use our dedicated software to view the results and create data for reports.
